Shires Karben Air5 Air Vest Jacket Cartridge
Item code: 1146145G
Warehouse Collection: To estimate when your item will be ready to collect, use the "Shipped" date above
Description

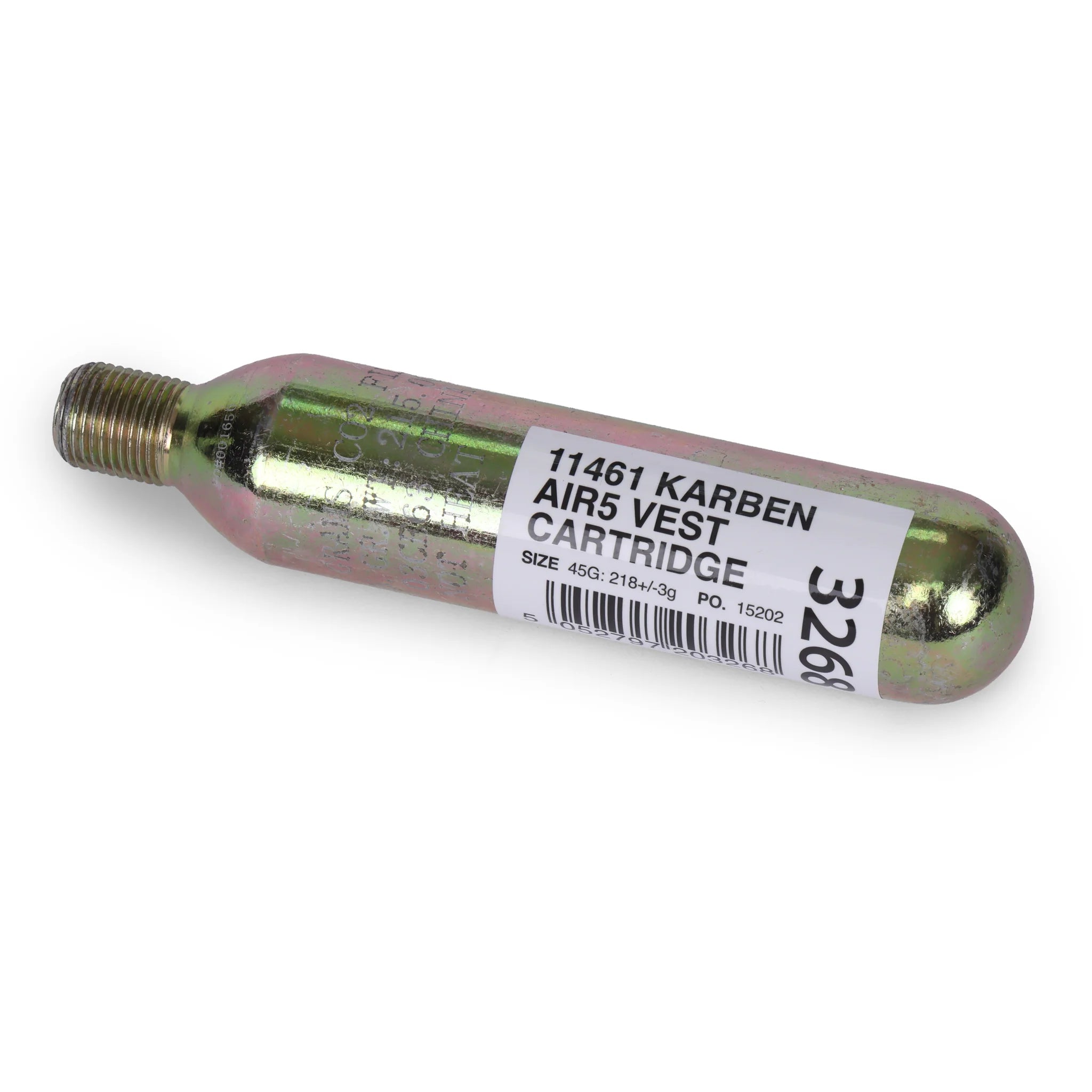

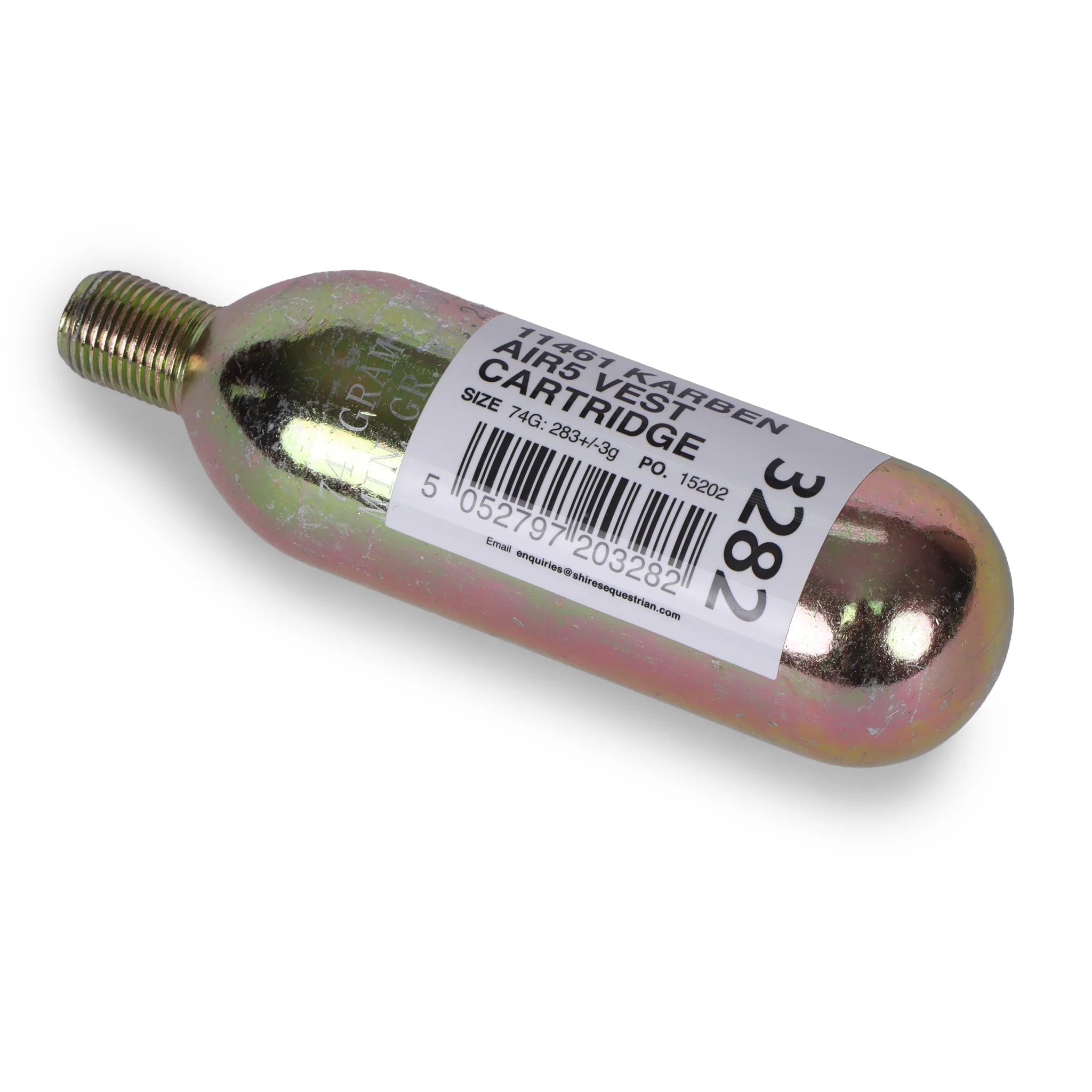

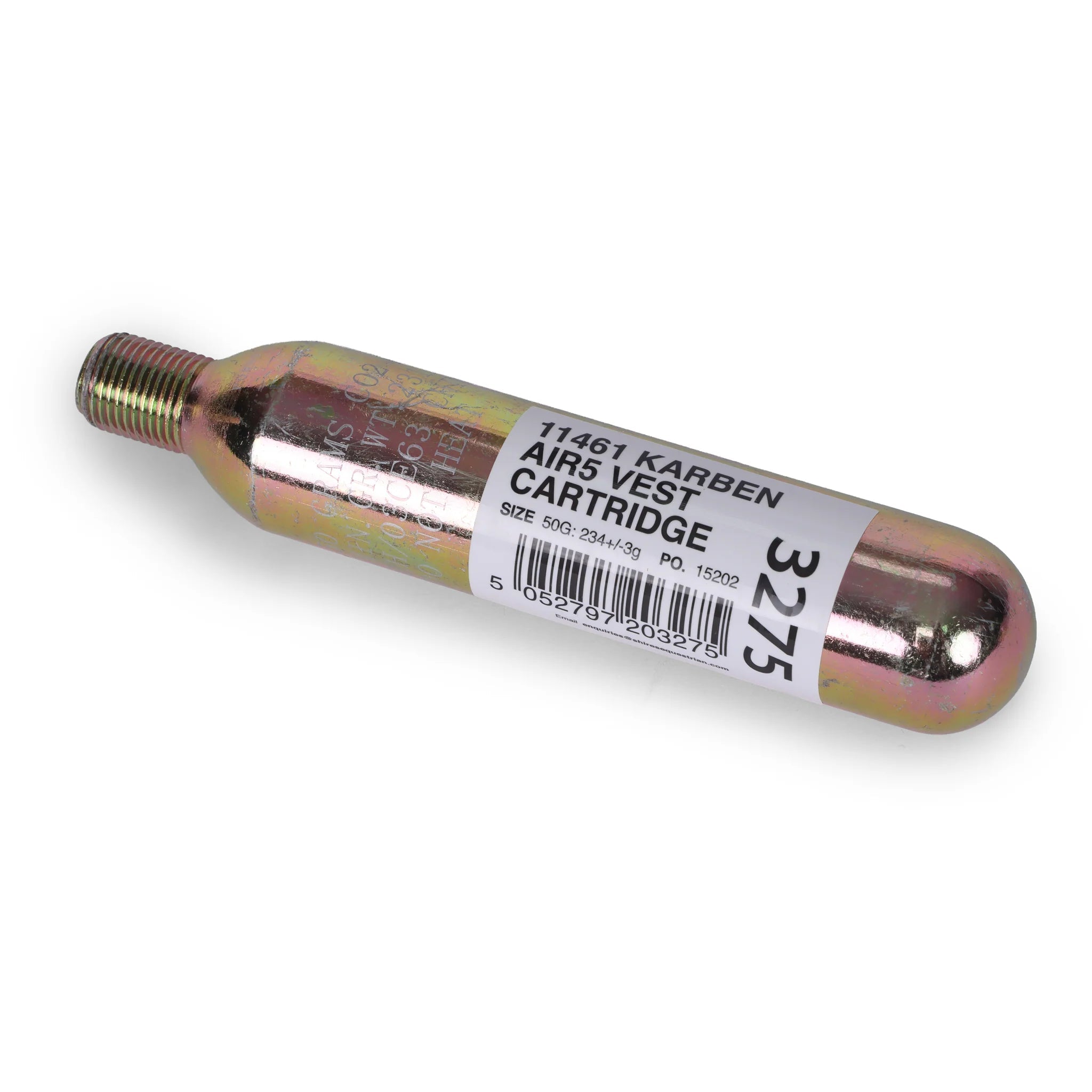

Shires Karben Air5 CO2 Air Vest Cartridge
The Shires Karben Air5 CO2 Air Vest Cartridge is the genuine replacement cartridge designed for use with the Karben Air5 Air Vest. It allows you to reset your air vest following deployment, so it can be prepared correctly before your next ride.
These CO2 cartridges comply with ADR safety standards, helping to ensure the canisters meet the required safety standards for transportation.
Always use a new, unused cartridge of the correct size and follow the manufacturer's instructions carefully when resetting your Karben Air5 Vest. Only genuine Karben CO2 Air Vest cartridges should be used with the Karben Air5 Air Vest Jacket.
Key Features
- Genuine Karben CO2 Air Vest replacement cartridge
- Designed for use with the Karben Air5 Air Vest
- Allows the air vest to be reset following deployment
- Complies with ADR safety standards for transportation
- Easy to install following the manufacturer's reset procedure
- Available in appropriate sizes to suit compatible Karben Air5 vests
How to Fit a Karben Air5 CO2 Cartridge
- Take the hexagon wrench and a new, unused CO2 cartridge of the appropriate size.
- Insert the hexagon wrench into the bottom of the key box and release the metal bottom cover.
- Position the key ball in the hole of the key box. If it does not fit correctly, loosen or tighten the bottom cover using the hexagon wrench as required.
- Unscrew and remove the used CO2 cartridge.
- Make sure the air cushions are completely deflated. Place the jacket face down on a flat surface and gently press each cushion to release any remaining gas. Do not roll or fold the jacket, as this may cause damage.
- Check that the key ball is positioned correctly and that the bottom cover is secure.
- Remove the hexagon wrench from the key box.
- Fit a new, unused Karben CO2 cartridge into the key box. Screw it in securely, taking care not to overt
- You must ensure you use the correct size cannister with your garment: XX Small - Small requires 45g; Small - Medium requires 50g; Large - XX Large requires 63g.
